Services

SERVICES

YEARS OF EXPERTISE

Cummins Sales and Service

  • Cummins Main Dealer

  • Sales, Parts and Service

    • Cummins Mercruiser – Range of high speed diesel engines (115 – 350 HP)
    • Cummins marine Engines from 235 – 715 HP
    • Cummins Onan Power Generation
    • Vetus – Marine engine range for both commercial and pleasure craft (11hp – 286hp)
    • Mercury Marine Diesel engines From 115 – 350 HP
Specialist Services

CUMMINS MARINE ENGINES

If you are looking for maintenance, repair, service and parts on the following engines, please get in touch.

Cummins Engines QSB 5.9
Recon Only

  • Cummins QSB 5.9 Recon for Marine

  • Details

    • Power 227 – 472 HP (169-352kW)
    • Built to meet or exceed your engine’s original specifications for performance, reliability and durability
    • Fully remanufactured according to Cummins five-step remanufacturing process
    • Exchange packages to replace Cummins units and repower packages to replace any brand in virtually any boat
    • Covered by a two-year, 2000-hour warranty and backed by Cummins global service network
    • Remanufactured at the Cummins ReCon Engine Plant in San Luis Potosi, Mexico.
Specialist Services
Specialist Services

Cummins Engines QSB 6.7

  • Cummins QSB 6.7 for Marine

  • Details

    • Power 184-405 kW | 247-542 hp
    • Quiet operation, including an 80-percent reduction in noise at idle, is one of the many benefits from the common-rail fuel system
    • Enhanced sociability from the high-pressure common-rail design virtually eliminates smoke and improves the whole boating experience
    • Maximize vessel performance and access comprehensive vessel diagnostic information via SmartCraft® electronics
    • Peace of mind delivered by the Cummins Captain’s Briefing and global service network
    • Built at Darlington Engine Plant in Darlington, U.K. and Rocky Mount Engine Plant in Rocky Mount, NC, U.S

Cummins Engines QSC 8.3

  • Cummins QSC 8.3 for Marine

  • Details

    • Power 368-441 kW | 493-592 hp
    • Unmatched performance from industry-leading power density on this four-valve-per-cylinder engine
    • Increased durability from innovative engine design characteristics
    • Improved fuel economy and sociability from the high-pressure common-rail fuel system
    • Maximize vessel performance and access comprehensive vessel diagnostic information via SmartCraft® electronics
    • Peace of mind delivered by the Cummins Captain’s Briefing and global service network
    • Built at Rocky Mount Engine Plant in Rocky Mount, NC, U.S.
Specialist Services
Specialist Services

Cummins Engines QSL 9

  • Cummins QSL 9 for Marine

  • Details

    • Power 209-302 kW | 281-405 hp
    • Dependability and long life proven through thousands of hours of reliable commercial and trawler operation
    • Clean, quiet operation with virtually no startup smoke from the high-pressure common-rail fuel system
    • Excellent fuel economy for long range cruising
    • Peace of mind delivered by the Cummins Captain’s Briefing and global service network
    • Built at Darlington Engine Plant in Darlington, U.K. and at Rocky Mount Engine Plant in Rocky Mount, NC, U.S.

Cummins Engines QSM 11

  • Cummins QSM 11 for Marine

  • Details

    • Power 220-526 kW | 295-705 hp
    • Proven acceleration and torque performance in thousands of boats from this dependable, four-valve-per-cylinder workhorse
    • Quiet and fuel efficient operation from innovative four-cycle design
    • Excellent, virtually smoke-free sociability ensures a pleasurable boating experience
    • Extended engine life from heavy-duty design elements
    • Peace of mind delivered by the Cummins Captain’s Briefing and global service network
    • Built at Darlington Engine Plant in Darlington, U.K., Jamestown Engine Plant in Jamestown, NY, U.S., and Rocky Mount Engine Plant in Rocky Mount, NC, U.S.
Specialist Services
Specialist Services

Cummins Engines X15

  • Cummins X15 for Marine

  • Details

    • Power 450 – 605hp (336 – 451 kW)
    • Engine Design – Robust engine block designed for continuous duty operation and long life. Single cylinder head with four valves per cylinder enhances performance. Base engine design has been in the market for over 15 years.
    • Fuel System – Cummins XPI Fuel System, High Pressure Common Rail
    • Lubrication System – Cast aluminum oil pan designed to resist corrosion, spin-on Fleetguard oil filters
    • Cooling System – Front mount and low profile Heat exchanger or Keel cool with one loop system and high flow pump
    • Air Intake System – Cummins Turbo Technologies HX60 turbocharger optimized for marine applications
    • Exhaust System – Dry exhaust manifold to deliver improved fuel economy
    • Electrical System – 24v system with marine grade wiring harness and instrument panels
    • Electronics – Cummins Engine Control Module CM2350 provides engine protection through de-rates and automated engine shutdown to prevent catastrophic failures. CM2350 also provides fuel sensor monitoring, gear pressure and temperature as well as digital engine start/stop functionality. Available 24V system and standard marine grade wiring harness.
    • Certifications – Complies with U.S. EPA Tier 3, EU Stage 3a and IMO Tier II emissions regulations

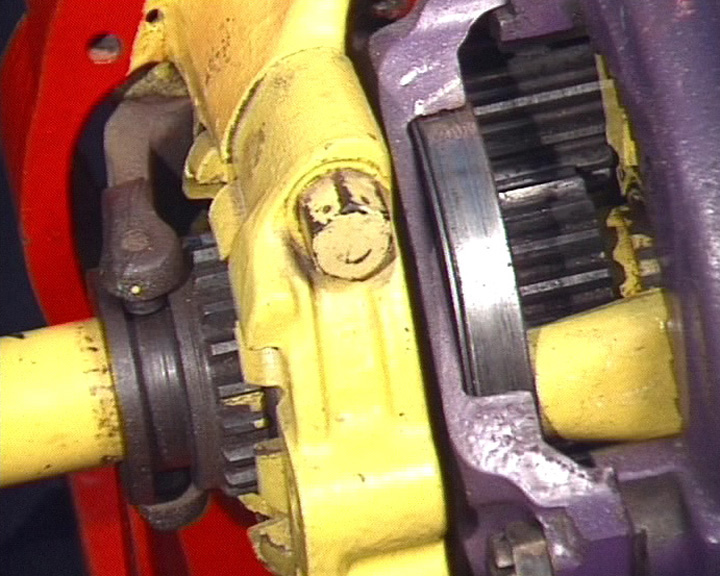

DRIVES AND TRANSMISSIONS

DRIVES AND TRANSMISSIONS FROM ZF MARINE, POD DRIVES AND ZEUS

Specialist Services

DRIVES AND TRANSMISSIONS

  • ZF marine transmissions

  • Pod Drives and Zeus pod drives

ZF 85A

  • ZF 85A

  • Details

    • Reverse reduction marine transmission with hydraulically actuated multi-disc clutches
    • Compatible with all types of engines and propulsion systems, including waterjets and surface- piercing propellers, as
      applicable
    • Design, manufacture and quality control standards comply with ISO 9001
    • Fully works tested, reliable and simple to install
    • Robust design also withstands continuous duty in workboat applications
    • Suitable for high performance applications in luxury motoryachts, sport fishers, express cruisers etc

    Features

    • B/W connection integrated with casing
    • Case hardened and precisely ground gear teeth for long life and smooth running
    • Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
    • Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode)
    • Compact, space saving design due to 8° down-angle and beveloid gear principle
    • Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
    • Oil drain plug
    • Lightweight and robust aluminum alloy casing (sea water resistant)
    • Replaceable oil filter
    • “SUPERSHIFT” clutch control
    • Integrated bosses for speed pick-up installation at output flange
Specialist Services
Specialist Services

POD DRIVES

  • PODS

  • Details

    • Zeus pod-drive system
    • Pod drives can operate independently and provide thrust in any direction
    • Vessel Maneuverability is very easy
    • Maneuver small and tight spaces
    • Potential fuel savings compared to shaft and prop configurations

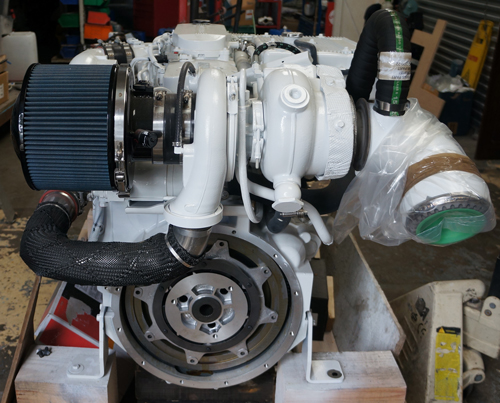

PARTS AND SERVICE

PILKINGTON MARINE HAVE OFFERED PARTS AND SERVICE FOR OVER 55 YEARS

PARTS AND SERVICES

Pilkington Marine offer parts and service support for all products.

A world-wide mail order service is available.
